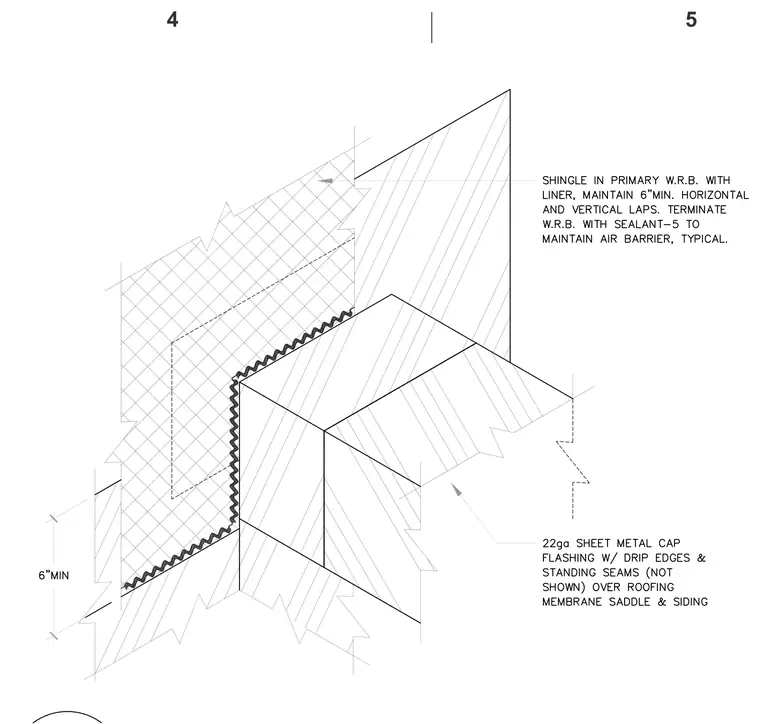

A twenty-two gauge sheet metal cap flashing with drip edges and standing seams is installed over roofing membrane saddle and siding. The primary water-resistive barrier is installed with a liner maintaining six-inch minimum horizontal and vertical laps. The water-resistive barrier is terminated with sealant to maintain the continuous air barrier.
