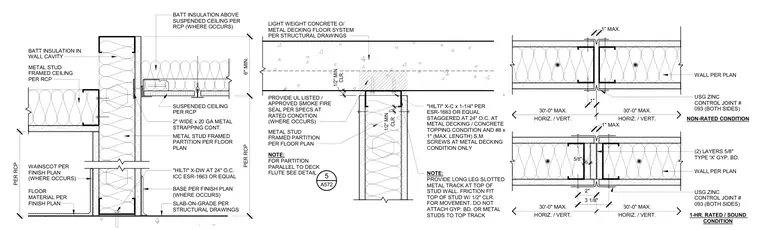

The metal stud partition terminates at a long-leg slotted metal track anchored to the underside of the concrete-filled metal deck. Hilti X-C by one-and-one-quarter-inch drive pins are staggered at twenty-four inches on center at the concrete topping condition, supplemented by maximum one-inch sheet metal screws at the metal deck. A one-half-inch minimum clearance is maintained between the top of the studs and the track to accommodate vertical deflection, leaving the gypsum board and metal studs unattached to the top track. A UL-listed smoke-and-fire seal is provided at rated conditions, and batt insulation fills the wall cavity. Additional details depict wall control joint conditions for both non-rated and one-hour rated or sound-rated assemblies utilizing USG zinc control joints.
LIGHT WEIGHT CONCRETE O/ METAL DECKING FLOOR SYSTEM PER STRUCTURAL DRAWINGS PROVIDE UL LISTED / APPROVED SMOKE FIRE SEAL PER SPECS AT RATED CONDITION (WHERE OCCURS) "HILTI" X-C x 1-1/4" PER ESR-1663 OR EQUAL STAGGERED AT 24" O.C. AT METAL DECKING / CONCRETE TOPPING CONDITION AND #8 x 1" (MAX. LENGTH) S.M. SCREWS AT METAL DECKING CONDITION ONLY METAL STUD FRAMED PARTITION PER FLOOR PLAN NOTE: FOR PARTITION PARALLEL TO DECK FLUTE SEE DETAIL 5 A572 NOTE: PROVIDE LONG LEG SLOTTED METAL TRACK AT TOP OF STUD WALL. FRICTION FIT TOP OF STUD W/ 1/2" CLR. FOR MOVEMENT. DO NOT ATTACH GYP. BD. OR METAL STUDS TO TOP TRACK CLR. 1/2" MIN. CLR. 1/2" MIN. 1" MAX. 1" WALL PER PLAN 30'-0" MAX. HORIZ. / VERT. 30'-0" MAX. HORIZ. / VERT. USG ZINC CONTROL JOINT # 093 (BOTH SIDES) WALL PER PLAN 30'-0" MAX. HORIZ. / VERT. 30'-0" MAX. HORIZ. / VERT. 2" 3 1/8" 1" MAX. (2) LAYERS 5/8" TYPE 'X' GYP. BD. USG ZINC CONTROL JOINT # 093 (BOTH SIDES) NON-RATED CONDITION 1-HR. RATED / SOUND CONDITION 5/8" PER RCP PER RCP 6" MIN. METAL STUD FRAMED CEILING PER RCP WAINSCOT PER FINISH PLAN (WHERE OCCURS) FLOOR MATERIAL PER FINISH PLAN SUSPENDED CEILING PER RCP 2" WIDE x 20 GA METAL STRAPPING CONT. METAL STUD FRAMED PARTITION PER FLOOR PLAN BATT INSULATION IN WALL CAVITY SLAB-ON-GRADE PER STRUCTURAL DRAWINGS BASE PER FINISH PLAN (WHERE OCCURS) "HILTI" X-DW AT 24" O.C. ICC ESR-1663 OR EQUAL BATT INSULATION ABOVE SUSPENDED CEILING PER RCP (WHERE OCCURS)
