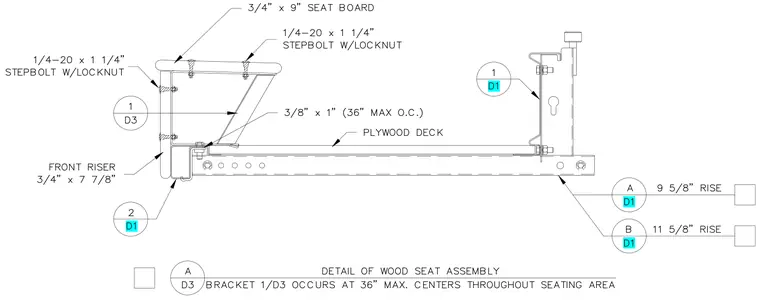

The wood seat assembly consists of a three-quarter-inch by nine-inch wood seat board and a three-quarter-inch by seven and seven-eighths-inch front riser supported by steel brackets spaced at a maximum of thirty-six inches on center. The wood boards attach to the steel brackets using quarter-twenty by one-and-one-quarter-inch step bolts with locknuts. The assembly rests over a plywood deck, secured with three-eighths-inch by one-inch fasteners.
1 D3 1 D1 9 5/8" RISE 11 5/8" RISE 2 D1 B D1 A D1 3/4" x 9" SEAT BOARD 1/4-20 x 1 1/4" STEPBOLT W/LOCKNUT PLYWOOD DECK 3/8" x 1" (36" MAX O.C.) FRONT RISER 3/4" x 7 7/8" 1/4-20 x 1 1/4" STEPBOLT W/LOCKNUT DETAIL OF WOOD SEAT ASSEMBLY A D3 BRACKET 1/D3 OCCURS AT 36" MAX. CENTERS THROUGHOUT SEATING AREA c ) I 0 J T - E 5
