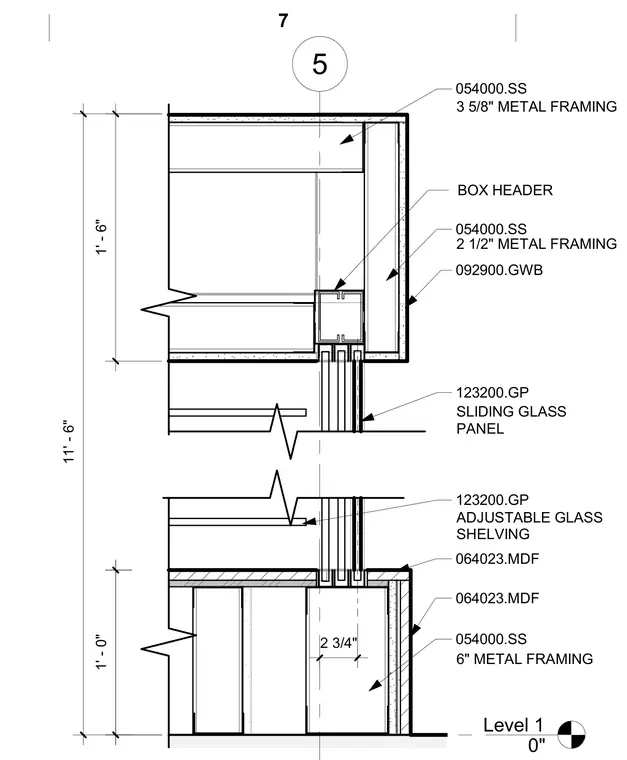

This display case section details a built-in architectural display assembly constructed over a Level 1 datum. The perimeter framing incorporates three-and-five-eighth-inch metal studs at the top, a two-and-one-half-inch metal framing box header, and six-inch metal framing at the base. Gypsum wallboard clads the exterior framing surfaces. Sliding glass panels and medium-density fiberboard elements are integrated with adjustable glass shelving.
Level 1 0" 5 123200.GP 064023.MDF 064023.MDF 1' - 0" 1' - 0" 1' - 6" 11' - 6" 2 3/4" SLIDING GLASS PANEL 092900.GWB 054000.SS 2 1/2" METAL FRAMING BOX HEADER 054000.SS 3 5/8" METAL FRAMING 054000.SS 6" METAL FRAMING 123200.GP ADJUSTABLE GLASS SHELVING 7
