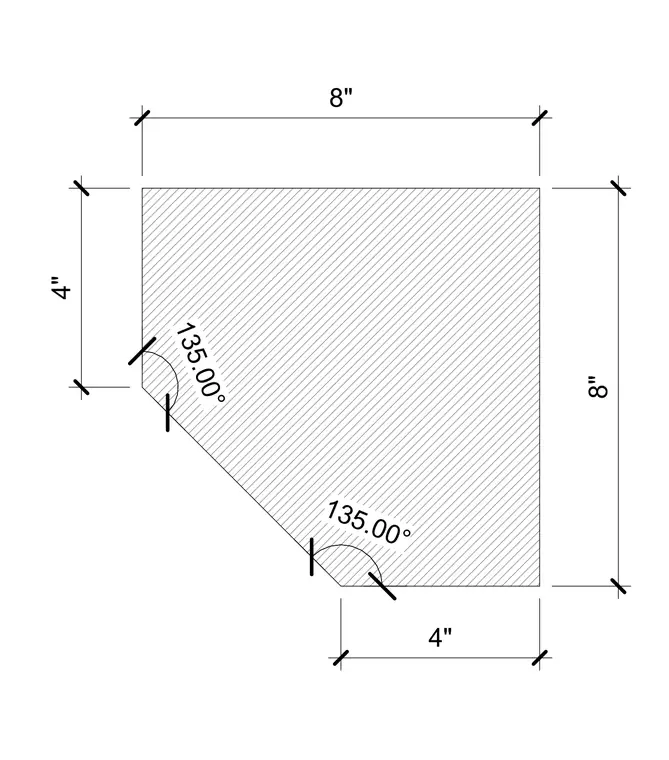

Granite shelf corner plan geometry featuring two chamfered edges set at 135-degree angles. The overall footprint measures 8 inches by 8 inches, with the chamfered segments spanning 4 inches along the respective sides. The profile is defined by these specific angular cuts to create a clipped corner condition.
