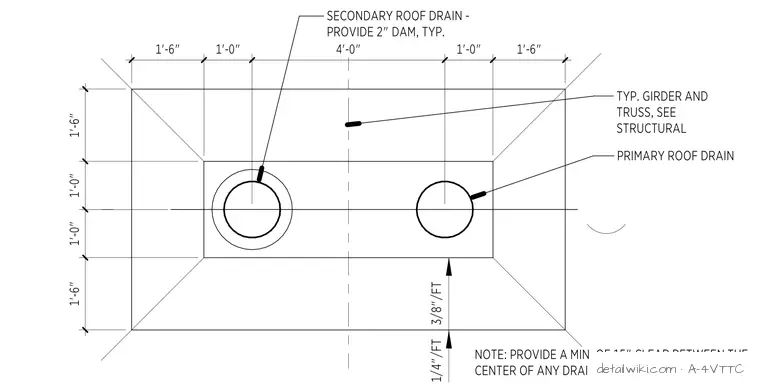

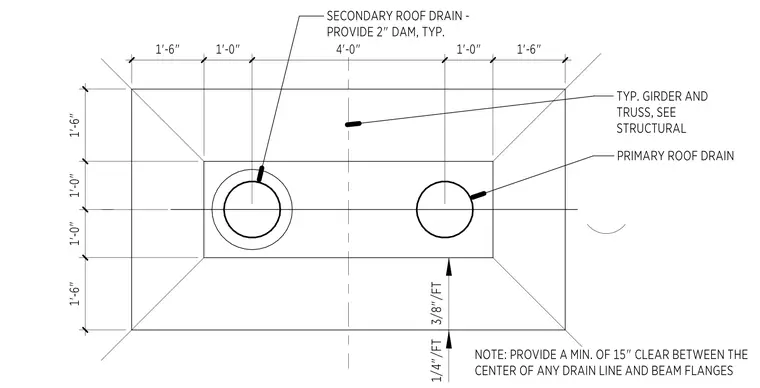

Primary and secondary roof drains are positioned within a structural bay. The secondary roof drain features a two-inch dam. A minimum of fifteen inches of clearance is required between the center of any drain line and adjacent structural girder or truss flanges. Roof slope is three-eighths inch per foot and one-quarter inch per foot in the respective drainage zones. Structural framing members must be coordinated per the structural drawings.
