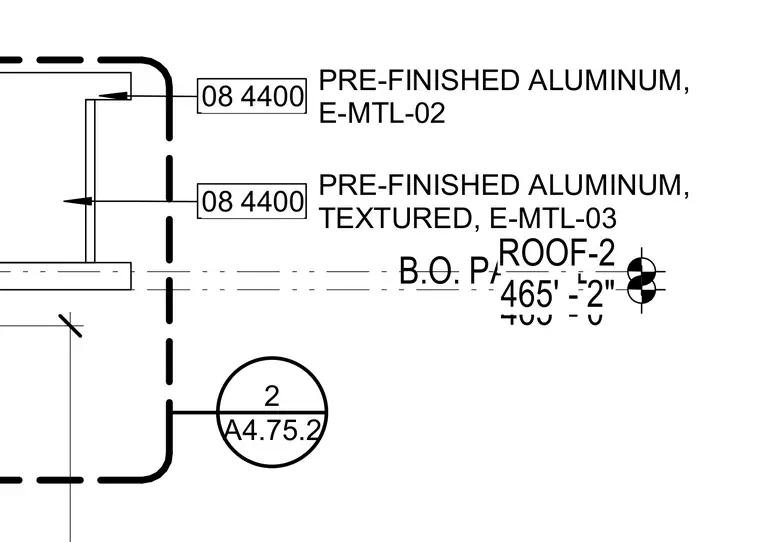

Pre-finished aluminum panels finish the roof parapet assembly with specified material types E-MTL-02 and textured E-MTL-03. The top of the parapet sits at elevation 465 feet 0 inches, with roof assembly ROOF-2 located at 465 feet 2 inches.
B.O. PARAPET 465' - 0" A4.75.2 2 08 4400 PRE-FINISHED ALUMINUM, E-MTL-02 08 4400 PRE-FINISHED ALUMINUM, TEXTURED, E-MTL-03 ROOF-2 465' - 2"
