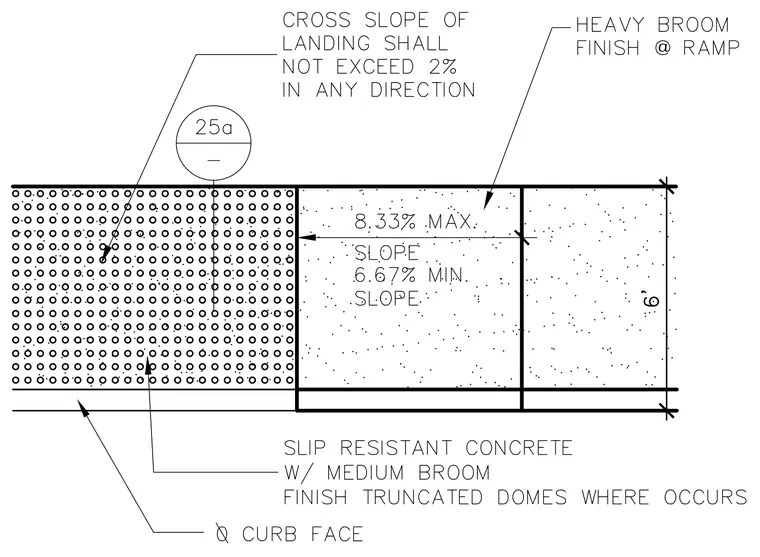

An accessible concrete ramp transitions to a landing fitted with truncated domes for tactile warning. The landing requires a cross slope not exceeding two percent in any direction. The ramp features a heavy broom finish with a maximum slope of 8.33 percent and a minimum slope of 6.67 percent. Areas with truncated domes receive slip-resistant concrete with a medium broom finish. A curb face bounds the ramp and landing assembly.
