A solid surface top with a mitered corner bears on two-and-a-half-inch blocking, a half-inch plywood layer, and three-quarter-inch plywood backer board painted as scheduled. The desk structure is supported by a one-inch steel square tube frame and one-inch steel square tube supports. Drawers are equipped with full-extension soft-close glides. The exterior is clad in half-inch paint-grade wood slats running in a continuous loop around the inside and outside, featuring recessed lighting and a lighting channel per schedule above a wood base.

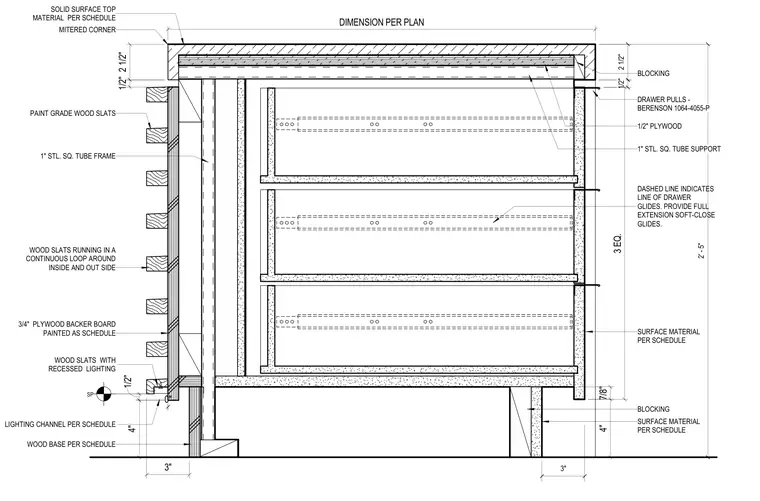

2' - 5" SOLID SURFACE TOP MATERIAL PER SCHEDULE 2 1/2" BLOCKING 1/2" PLYWOOD 3/4" PLYWOOD BACKER BOARD PAINTED AS SCHEDULE DRAWER PULLS - BERENSON 1064-4055-P SURFACE MATERIAL PER SCHEDULE SURFACE MATERIAL PER SCHEDULE 3" BLOCKING 1/2" PAINT GRADE WOOD SLATS 4" 2 1/2" 7/8" 4" 3" WOOD SLATS RUNNING IN A CONTINUOUS LOOP AROUND INSIDE AND OUT SIDE WOOD BASE PER SCHEDULE WOOD SLATS WITH RECESSED LIGHTING LIGHTING CHANNEL PER SCHEDULE SP 1/2" 1" STL. SQ. TUBE SUPPORT DASHED LINE INDICATES LINE OF DRAWER GLIDES. PROVIDE FULL EXTENSION SOFT-CLOSE GLIDES. 3 EQ. 1" STL. SQ. TUBE FRAME 1/2" 0" DIMENSION PER PLAN MITERED CORNER
