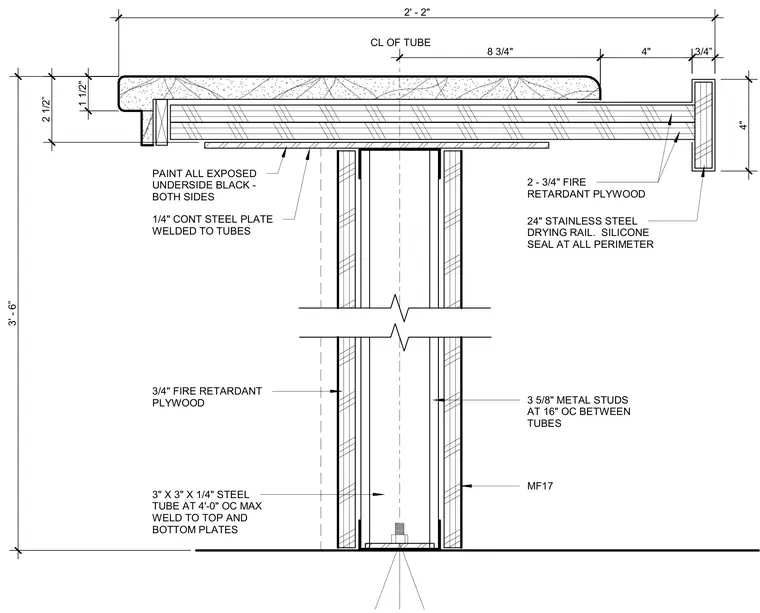

The assembly is anchored by 3 inch by 3 inch by 1/4 inch steel tubes spaced at 4'-0" on center maximum, welded to top and bottom plates. Metal studs measuring 3 5/8 inches at 16 inches on center run between the tubes, faced with two layers of 3/4-inch fire-retardant plywood on the sides. A continuous 1/4-inch steel plate is welded to the top tubes, with all exposed undersides painted black on both sides. A cantilevered top includes double 3/4-inch fire-retardant plywood sheets projecting outward, terminating in a 24-inch stainless steel drying rail sealed with silicone along all perimeters.
PAINT ALL EXPOSED UNDERSIDE BLACK - BOTH SIDES 2 - 3/4" FIRE RETARDANT PLYWOOD CL OF TUBE 8 3/4" 4" 3/4” 2' - 2" 1/4" CONT STEEL PLATE WELDED TO TUBES 3/4" FIRE RETARDANT PLYWOOD 3" X 3" X 1/4" STEEL TUBE AT 4'-0" OC MAX WELD TO TOP AND BOTTOM PLATES 24" STAINLESS STEEL DRYING RAIL. SILICONE SEAL AT ALL PERIMETER 3 5/8" METAL STUDS AT 16" OC BETWEEN TUBES MF17 4" 1 1/2" 2 1/2” 3' - 6”
