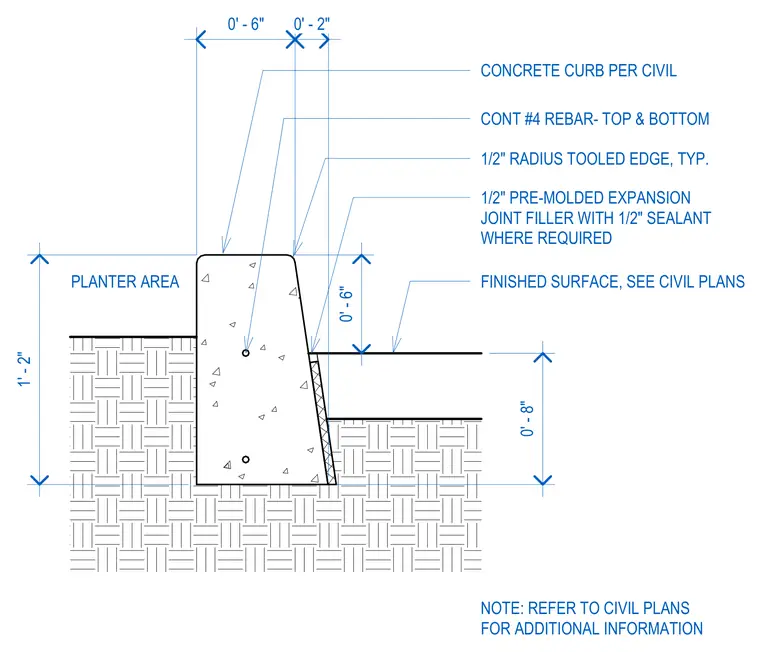

This cast-in-place concrete curb stands one foot two inches high, separating a planter area from the finished surface specified per civil plans. The profile is reinforced with continuous number four rebars placed at the top and bottom. The top outside corner features a typical one-half-inch radius tooled edge. A one-half-inch pre-molded expansion joint filler with sealant is included where required.
0' - 6" 0' - 2" 0' - 6" 0' - 8" 1' - 2" CONCRETE CURB PER CIVIL CONT #4 REBAR- TOP & BOTTOM 1/2" RADIUS TOOLED EDGE, TYP. 1/2" PRE-MOLDED EXPANSION JOINT FILLER WITH 1/2" SEALANT WHERE REQUIRED FINISHED SURFACE, SEE CIVIL PLANS PLANTER AREA NOTE: REFER TO CIVIL PLANS FOR ADDITIONAL INFORMATION
