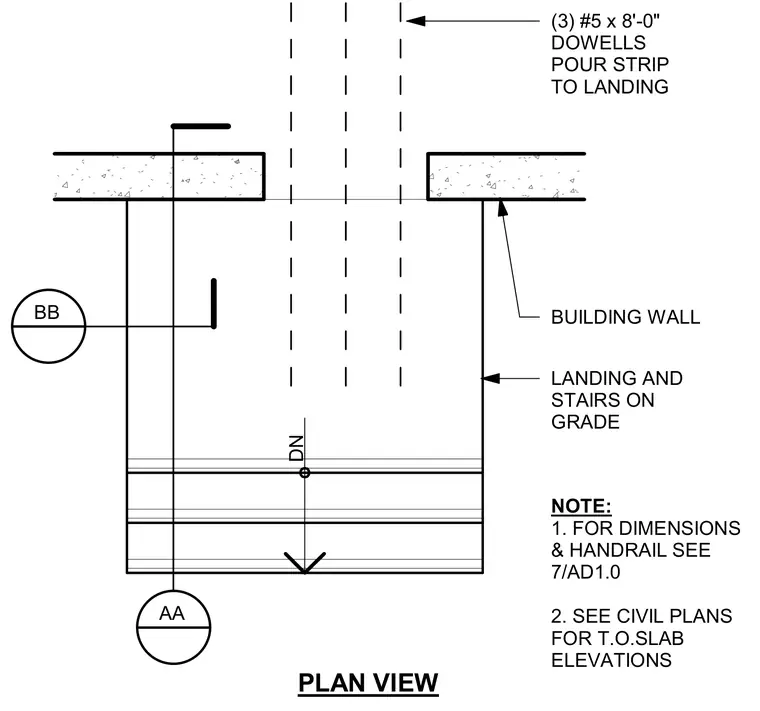

A concrete stair landing and stairs on grade connect to an adjacent building wall utilizing three number five by eight-foot reinforcing dowels across a pour strip. The landing layout indicates a downward direction with section callouts AA and BB referenced on the plan view. Notes direct the user to civil plans for top of slab elevations and to sheet 7/AD1.0 for overall dimensions and handrail details.
PLAN VIEW AA BB NOTE: 1. FOR DIMENSIONS & HANDRAIL SEE 7/AD1.0 2. SEE CIVIL PLANS FOR T.O.SLAB ELEVATIONS BUILDING WALL LANDING AND STAIRS ON GRADE DN (3) #5 x 8'-0" DOWELLS POUR STRIP TO LANDING
