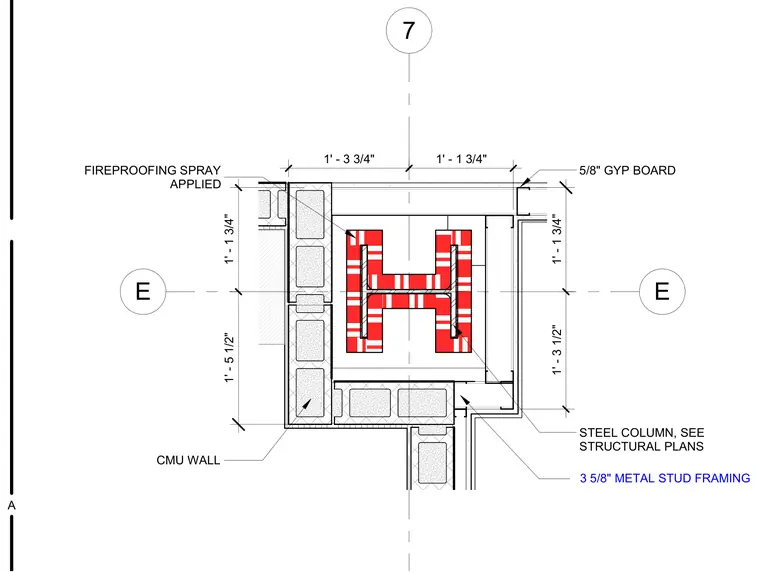

A structural steel column is encased within a concrete masonry unit wall layout, finished with spray-applied fireproofing. Metal stud framing with five-eighths inch gypsum board is tied into the assembly to enclose the interior face. Clearances and dimensions align the masonry courses with the column flanges.
7 E E 1' - 3 3/4" 1' - 1 3/4" 1' - 5 1/2" 1' - 1 3/4" 1' - 1 3/4" 1' - 3 1/2" 3 5/8" METAL STUD FRAMING FIREPROOFING SPRAY APPLIED CMU WALL 5/8" GYP BOARD STEEL COLUMN, SEE STRUCTURAL PLANS A
