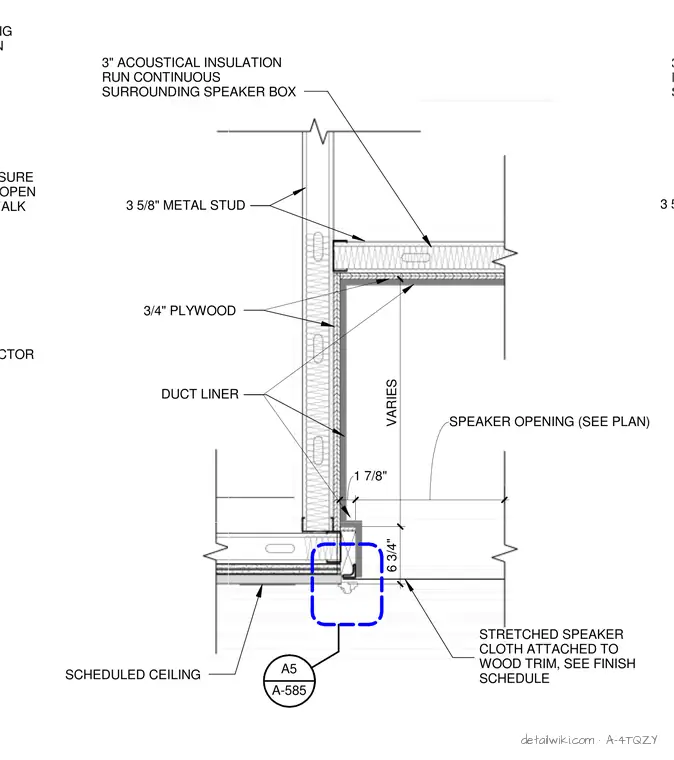

This assembly consists of three-and-five-eighths-inch metal studs supporting a speaker enclosure lined with duct liner and three-quarter-inch plywood. Three inches of acoustical insulation run continuous surrounding the speaker box. The enclosure terminates at a scheduled ceiling with a speaker opening sized per plan, featuring one-and-seven-eighths-inch stretched speaker cloth attached to wood trim as specified in the finish schedule.
3 5/8" METAL STUD 3 5/8" METAL STUD 3" ACOUSTICAL INSULATION RUN CONTINUOUS SURROUNDING SPEAKER BOX 3 5/8" METAL STUD 3 5/8" METAL STUD 6 3/4" VARIES SPEAKER OPENING (SEE PLAN) 1 7/8" STRETCHED SPEAKER CLOTH ATTACHED TO WOOD TRIM, SEE FINISH SCHEDULE A-585 A5 SCHEDULED CEILING 3/4" PLYWOOD 3" ACOUSTICAL INSULATION RUN CONTINUOUS SURROUNDING SPEAKER BOX DUCT LINER PROJECTOR ENCLOSURE ACCESS VIA SWING-OPEN HATCH, FROM CATWALK CONSTRUCT PROJECTOR LATCH, OR OTHER MEANS OF SECURING ACCESS DOOR IN THE 'OPEN' POSITION
