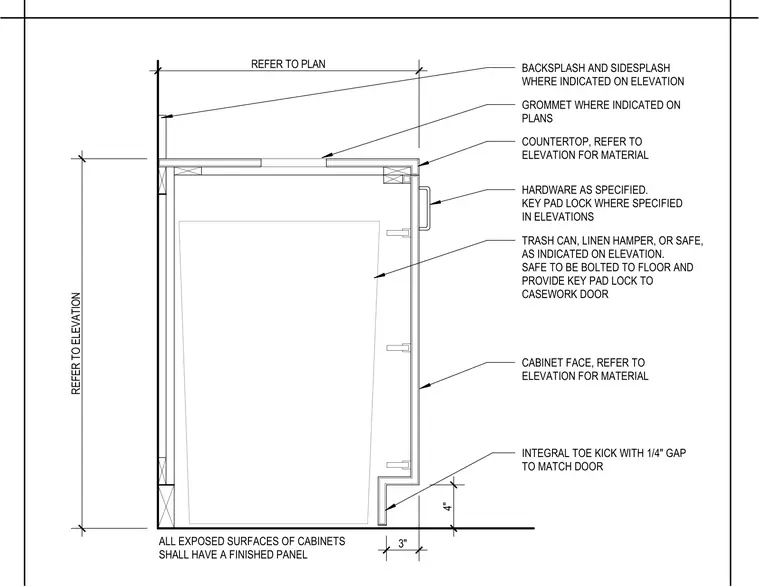

This base cabinet assembly includes an integral toe kick with a one-quarter inch gap to match the door face. The cabinet interior is configured to house a trash can, linen hamper, or safe as indicated on the elevations. When a safe is installed, it must be bolted to the floor and equipped with a keypad lock on the casework door. The cabinet features a countertop, backsplash, and sidesplash with materials specified in the elevations, along with a grommet for cable management where indicated on the plans. All exposed cabinet surfaces are finished with a panel.
Text on the drawing
HARDWARE AS SPECIFIED. KEY PAD LOCK WHERE SPECIFIED IN ELEVATIONS CABINET FACE, REFER TO ELEVATION FOR MATERIAL BACKSPLASH AND SIDESPLASH WHERE INDICATED ON ELEVATION COUNTERTOP, REFER TO ELEVATION FOR MATERIAL REFER TO ELEVATION REFER TO PLAN TRASH CAN, LINEN HAMPER, OR SAFE, AS INDICATED ON ELEVATION. SAFE TO BE BOLTED TO FLOOR AND PROVIDE KEY PAD LOCK TO CASEWORK DOOR GROMMET WHERE INDICATED ON PLANS
