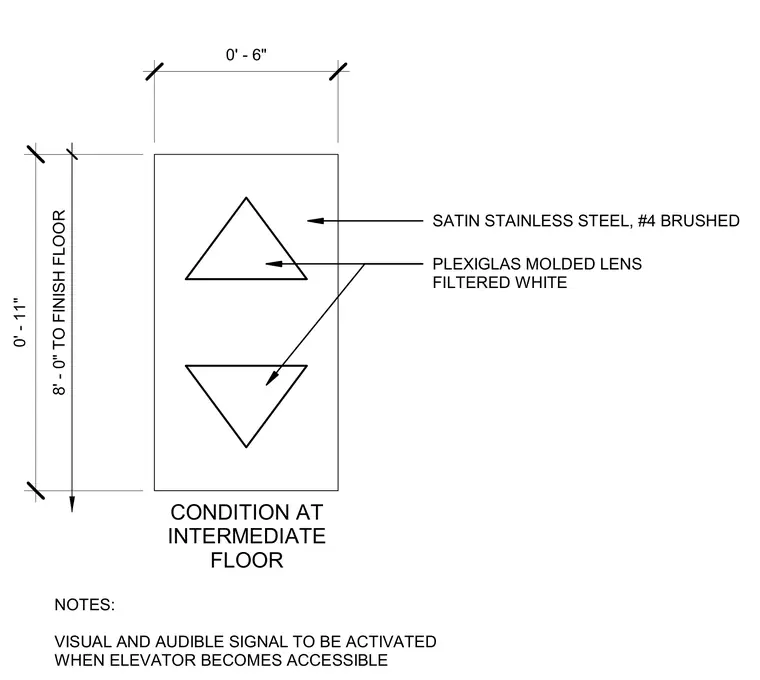

An elevator jamb panel assembly is located at an intermediate floor level, positioned at eight feet above the finished floor. The panel consists of a satin stainless steel plate with a number four brushed finish. Filtered white Plexiglas molded lenses are integrated into the panel for visual and audible signals activated when the elevator becomes accessible.
CONDITION AT INTERMEDIATE FLOOR SATIN STAINLESS STEEL, #4 BRUSHED 8' - 0" TO FINISH FLOOR 0' - 11" 0' - 6" PLEXIGLAS MOLDED LENS FILTERED WHITE NOTES: VISUAL AND AUDIBLE SIGNAL TO BE ACTIVATED WHEN ELEVATOR BECOMES ACCESSIBLE
