The wood stair landing bears on structural steel channels with a bent closure plate beyond and a steel angle stiffener below. Treads are one and one-half inches thick, constructed from two layers of five-eighths-inch plywood topped with a single layer of one-quarter-inch hardwood. The structural steel framing is pre-drilled to receive tread fasteners. A stringer per structural plans coordinates with the steel channel header to complete the transition. Wood landing panels finish flush against the stair assembly.

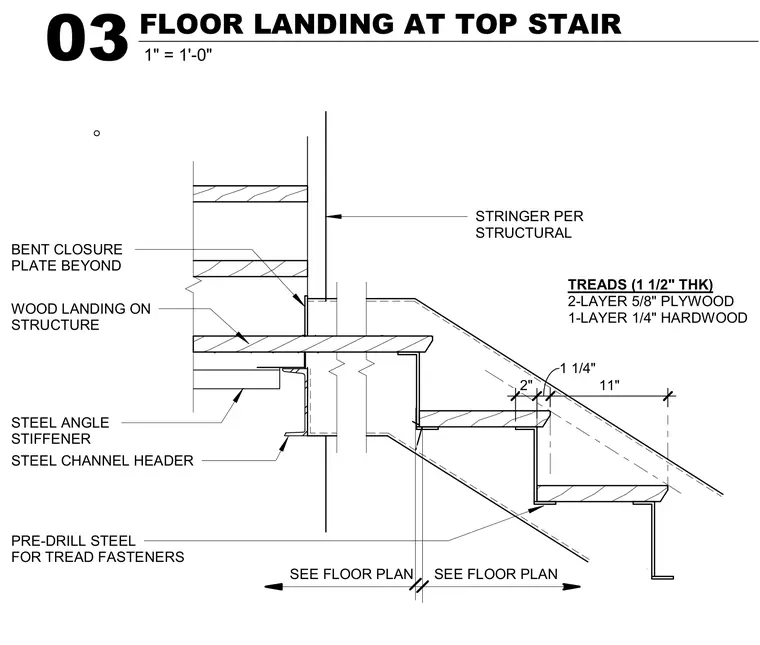

TREADS (1 1/2" THK) 2-LAYER 5/8" PLYWOOD 1-LAYER 1/4" HARDWOOD SEE FLOOR PLAN PRE-DRILL STEEL FOR TREAD FASTENERS BENT CLOSURE PLATE BEYOND WOOD LANDING ON STRUCTURE STEEL ANGLE STIFFENER STEEL CHANNEL HEADER STRINGER PER STRUCTURAL SEE FLOOR PLAN 2" 1 1/4" 11" 1" = 1'-0" 03 FLOOR LANDING AT TOP STAIR
