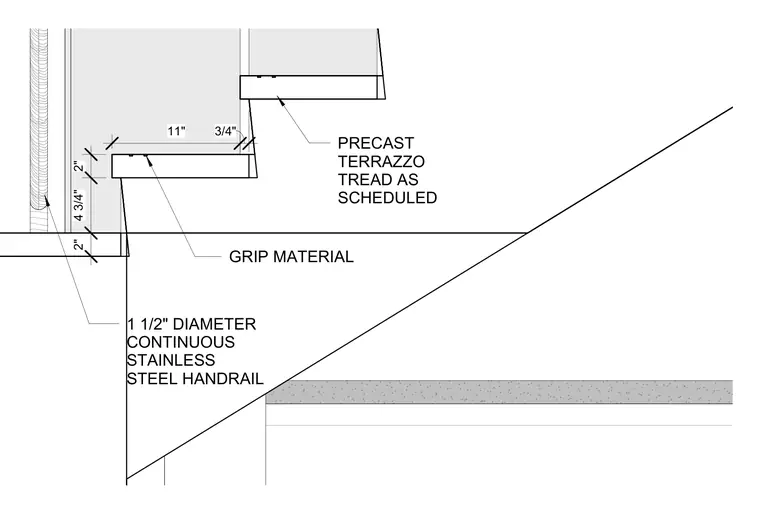

Precast terrazzo treads as scheduled feature a grip material and are supported by a stair stringer anchored to a concrete plinth. A one and one-half inch diameter continuous stainless steel handrail is mounted alongside the assembly. Dimensions indicate tread configurations including eleven-inch runs and riser proportions.
PRECAST TERRAZZO TREAD AS SCHEDULED GRIP MATERIAL 2" 4 3/4" 2" 11" 3/4" 1 1/2" DIAMETER CONTINUOUS STAINLESS STEEL HANDRAIL
