A differential pressure switch connects to high and pressure taps via half-inch tubing routed through a five-valve coplanar manifold and isolation valves. One-inch diameter piping segments measuring eighteen inches in length serve as mud legs at the base of the runs, terminated with unions and caps. All horizontal runs slope at least one inch per foot toward the taps.

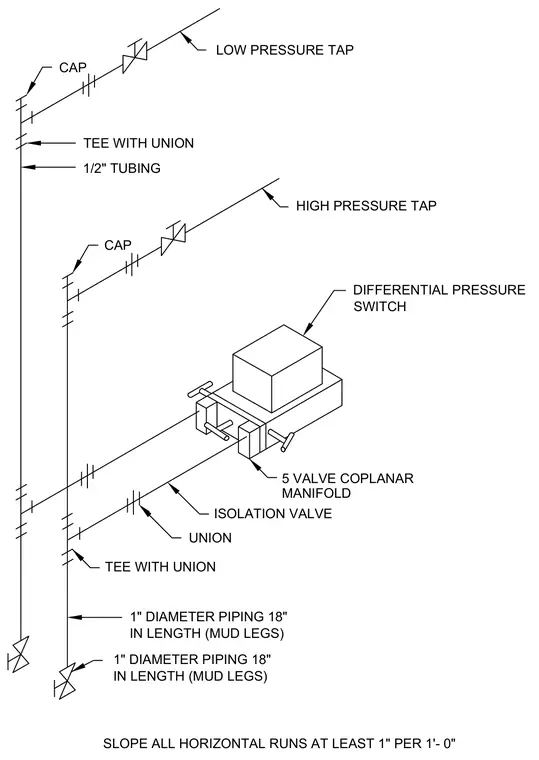

1" DIAMETER PIPING 18" IN LENGTH (MUD LEGS) 1" DIAMETER PIPING 18" IN LENGTH (MUD LEGS) 5 VALVE COPLANAR MANIFOLD ISOLATION VALVE UNION TEE WITH UNION DIFFERENTIAL PRESSURE HIGH PRESSURE TAP LOW PRESSURE TAP 1/2" TUBING SLOPE ALL HORIZONTAL RUNS AT LEAST 1" PER 1'- 0" TEE WITH UNION CAP CAP SWITCH
