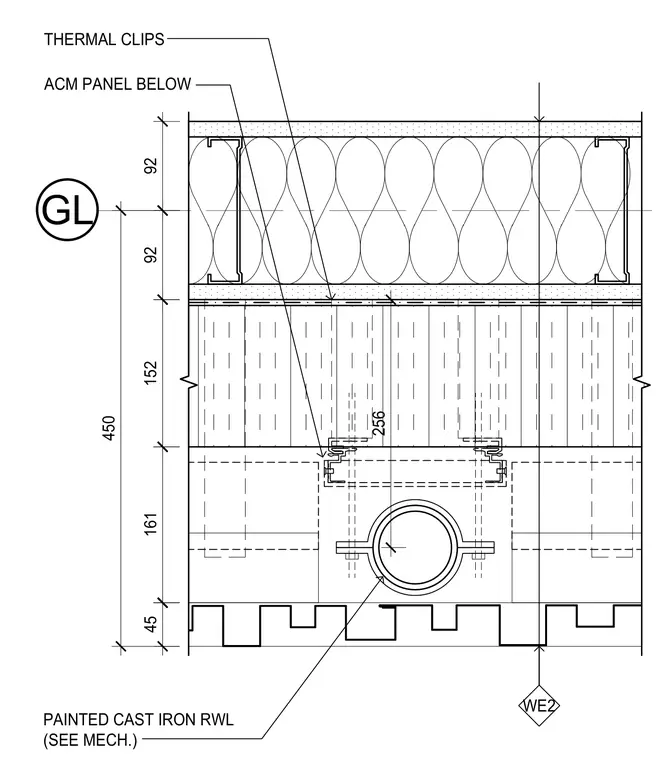

A painted cast iron rainwater leader is integrated into a metal cladding assembly behind aluminum composite material panels. The assembly is supported by thermal clips fastened to the exterior wall substrate. Insulation fills the stud cavity behind the exterior sheathing layer.
GL WE2 92 92 152 161 45 450 ACM PANEL BELOW THERMAL CLIPS PAINTED CAST IRON RWL (SEE MECH.) 256
