Architectural · A-4T5WH

Break Room Cabinet and Sink Section

Materials

Elements

Walls Partitions Doors Millwork / Casework

About this detail

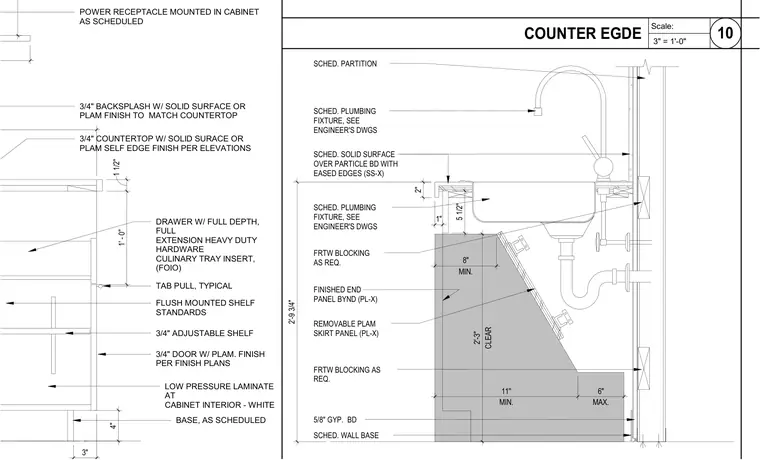

Interior casework base cabinet assembly anchored against a gypsum board partition wall with fire-retardant-treated wood blocking. The countertop features a three-quarter-inch solid surface or plastic laminate finish with a self-edge, backed by a matching three-quarter-inch backsplash and supported by a solid surface over particleboard substrate with eased edges. Below the counter, a sink is integrated with scheduled plumbing fixtures and piping coordinated through mechanical drawings, alongside a removable plastic laminate skirt panel providing accessible clearance. The lower portion includes a toe kick base, while adjacent drawer and cabinet components utilize low-pressure white laminate interiors, three-quarter-inch doors and adjustable shelves, full-extension heavy-duty hardware, and typical tab pulls.
