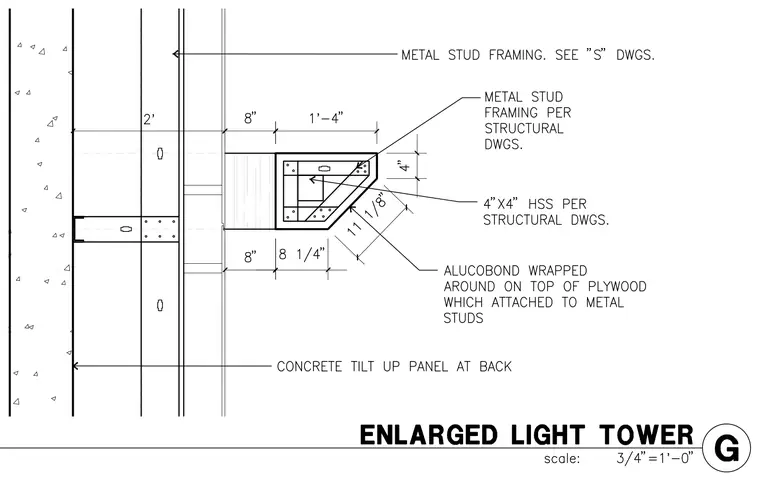

An architectural light tower projects from a concrete tilt-up panel backing wall. Metal stud framing, sized per structural drawings, supports a 4-inch by 4-inch hollow structural section. Plywood sheathing is attached directly to the metal stud framing, and Alucobond material is wrapped over the exterior of the projection.
