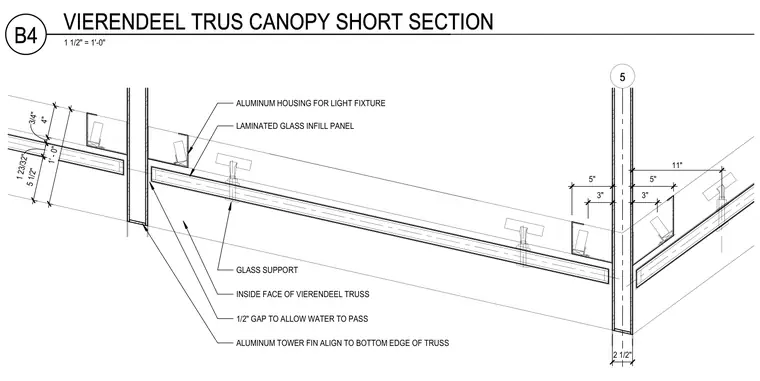

A short section of a Vierendeel truss canopy features laminated glass infill panels supported by custom glass supports. An aluminum tower fin aligns with the bottom edge of the truss. An aluminum housing for a light fixture is integrated into the assembly, along with a half-inch gap to allow water to pass.
5 3 " 5 " 1 2 3 / 3 2 " 1/2" GAP TO ALLOW WATER TO PASS INSIDE FACE OF VIERENDEEL TRUSS LAMINATED GLASS INFILL PANEL ALUMINUM HOUSING FOR LIGHT FIXTURE ALUMINUM TOWER FIN ALIGN TO BOTTOM EDGE OF TRUSS 2 1 / 2 " 4 " 3 / 4 " 1 ' - 0 " 5 1 / 2 " 5 " 3 " GLASS SUPPORT 1 1 " 1 1/2" = 1'-0" B4 VIERENDEEL TRUS CANOPY SHORT SECTION
