Architectural · A-4STTW

Wood Window Sill at Concrete Foundation

Materials

Elements

Columns Windows Floors / Slabs Foundations / Footings Anchors / Embeds

About this detail

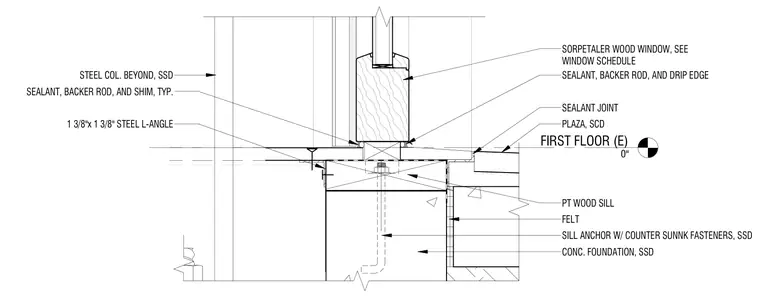

A Sorpetaler wood window bears on a pressure-treated wood sill plate anchored to a concrete foundation with a sill anchor and countersunk fasteners. A felt layer and a one-and-three-eighths-inch by one-and-three-eighths-inch steel L-angle are integrated below the window frame alongside typical sealant, backer rods, and shims. Exterior plaza paving meets the foundation assembly below a sealed joint with a drip edge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
