An intermediate stair landing guardrail assembly is supported by intermediate landing supports as required. A quarter-inch-thick steel closure plate is welded to the end of the stringers. The guardrail system consists of a one-and-a-half-inch diameter painted steel pipe top rail and one-and-a-quarter-inch diameter painted intermediate steel pipe rails, with no interior rails required if less than four inches wide. All connections must be welded and ground smooth.

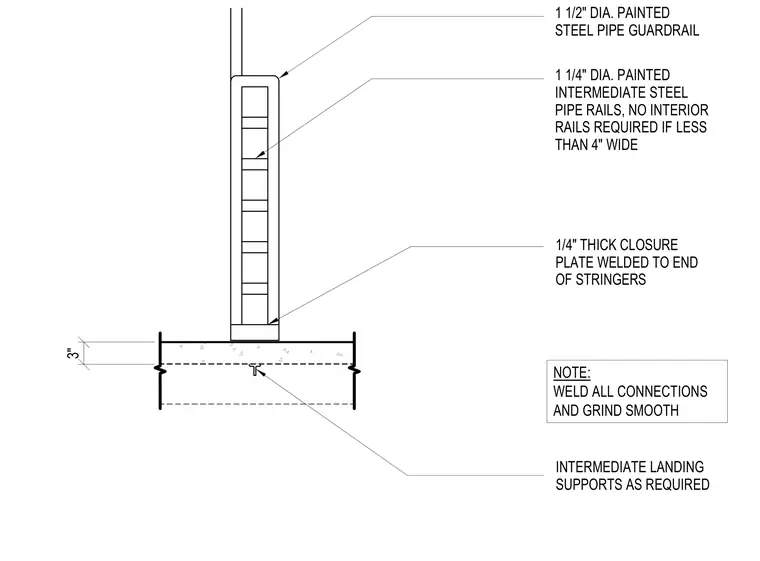

3" 1/4" THICK CLOSURE PLATE WELDED TO END OF STRINGERS 1 1/2" DIA. PAINTED STEEL PIPE GUARDRAIL INTERMEDIATE LANDING SUPPORTS AS REQUIRED 1 1/4" DIA. PAINTED INTERMEDIATE STEEL PIPE RAILS, NO INTERIOR RAILS REQUIRED IF LESS THAN 4" WIDE NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH
