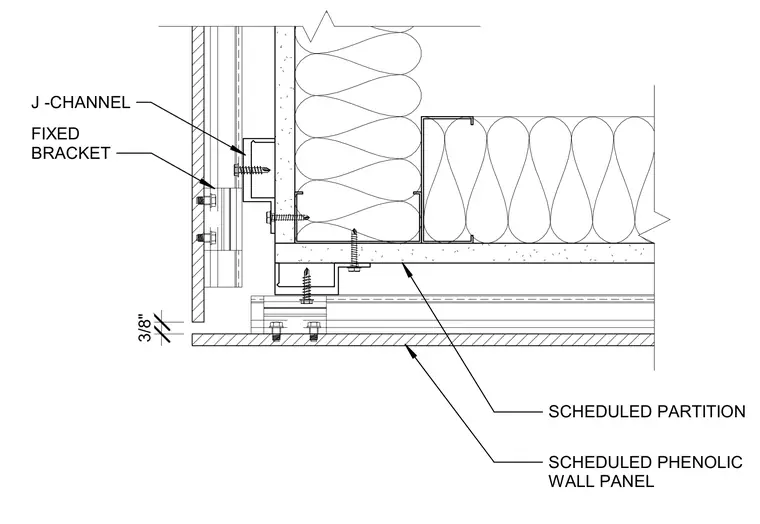

Scheduled phenolic wall panels meet at an outside corner with a 3/8-inch joint. The panels secure to fixed brackets and J-channels anchored back to the scheduled partition framing. Fasteners fasten the metal framing and bracket assemblies together.
