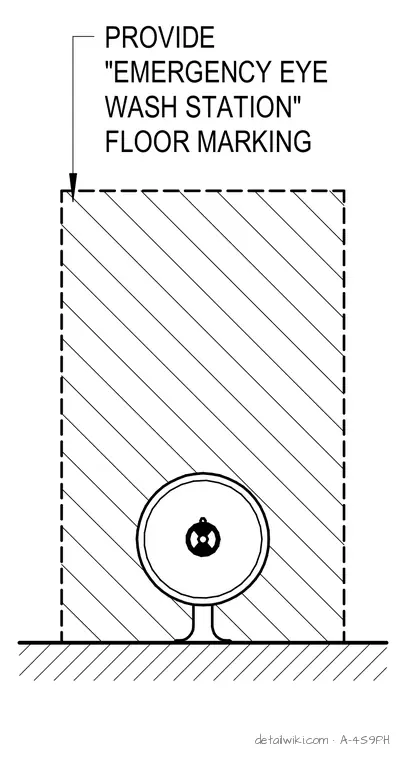

The assembly consists of a designated floor area marked for an emergency eyewash station. The rectangular zone is delineated with dashed lines and diagonal hatching to indicate the required clear floor space. A callout specifies the application of an "EMERGENCY EYE WASH STATION" floor marking within this boundary.
Text on the drawing
EYEWASH STATION FLOOR PLAN PROVIDE "EMERGENCY EYE WASH STATION" FLOOR MARKING
