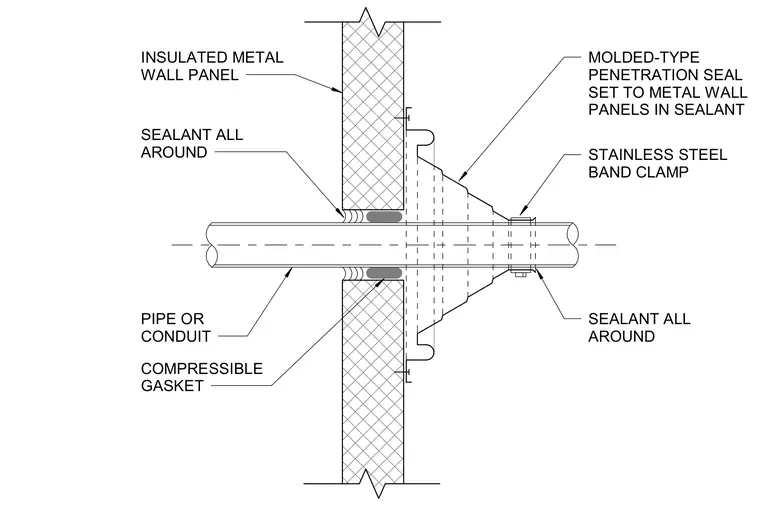

A pipe or conduit penetrates an insulated metal wall panel with a compressible gasket set within the opening and continuous sealant applied all around. A molded-type penetration seal is set into sealant against the exterior face of the metal wall panel and secured around the pipe with a stainless steel band clamp. Additional sealant is applied all around the interface between the band clamp and the pipe or conduit.
PIPE OR CONDUIT STAINLESS STEEL BAND CLAMP SEALANT ALL AROUND SEALANT ALL AROUND MOLDED-TYPE PENETRATION SEAL SET TO METAL WALL PANELS IN SEALANT INSULATED METAL WALL PANEL COMPRESSIBLE GASKET
