A-4RP38 — Foam Expansion at Vertical Penetrations

Architectural · A-4RP38

Foam Expansion at Vertical Penetrations

Elements

Columns Drainage Site / Paving Roof / Floor Openings

About this detail

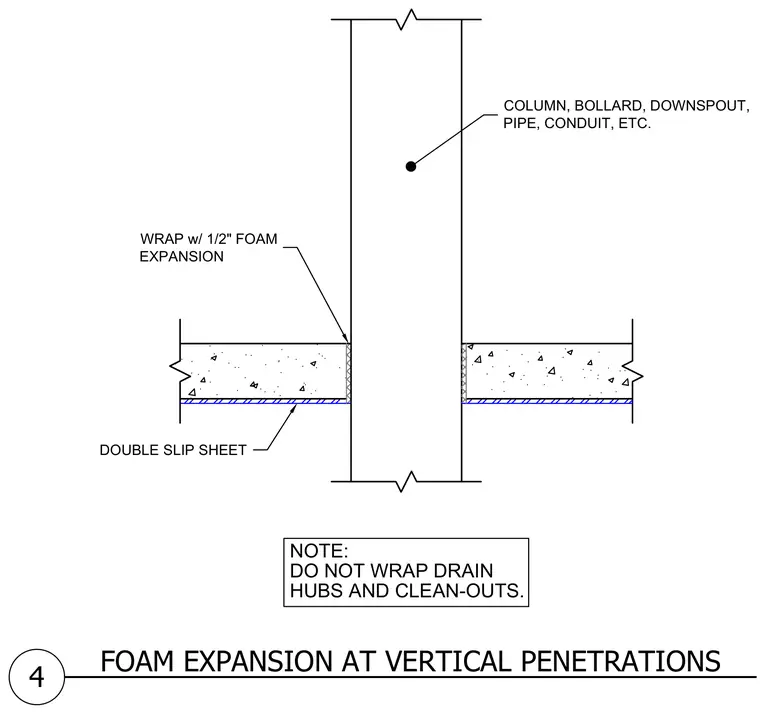

A vertical penetration such as a column, bollard, downspout, pipe, or conduit passes through a concrete slab opening lined with one-half inch foam expansion. A double slip sheet is installed beneath the concrete slab. Drain hubs and clean-outs are explicitly left unwrapped per drawing notes.

DOUBLE SLIP SHEET WRAP w/ 1/2" FOAM EXPANSION COLUMN, BOLLARD, DOWNSPOUT, PIPE, CONDUIT, ETC. NOTE: DO NOT WRAP DRAIN HUBS AND CLEAN-OUTS. FOAM EXPANSION AT VERTICAL PENETRATIONS 4

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
