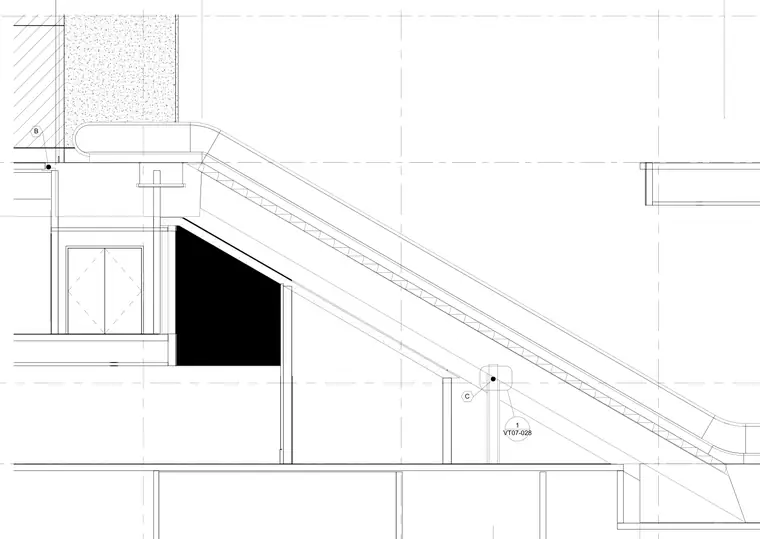

An escalator incline transitions to a landing assembly supported by structural framing and vertical posts. The underside features an enclosed soffit finish with a framed bulkhead below the upper landing transition. Grid lines establish the spatial layout for the escalator and structural supports.
