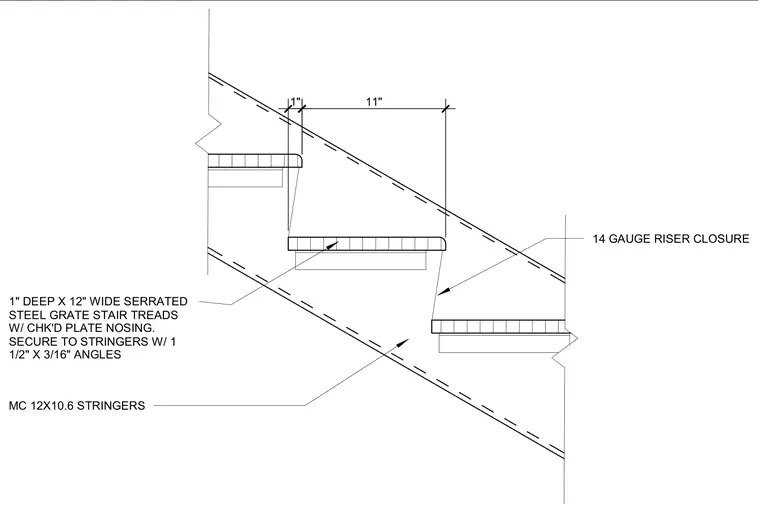

One-inch deep by twelve-inch wide serrated steel grate stair treads feature a checkered plate nosing and secure to MC 12x10.6 steel stringers using one and a half inch by three-sixteenths inch angles. A fourteen-gauge riser closure spans between the treads. Dimensions indicate an eleven-inch tread run with a one-inch nosing overhang.
11" 1" 1" DEEP X 12" WIDE SERRATED STEEL GRATE STAIR TREADS W/ CHK'D PLATE NOSING. SECURE TO STRINGERS W/ 1 1/2" X 3/16" ANGLES MC 12X10.6 STRINGERS 14 GAUGE RISER CLOSURE
