Architectural · A-4R58T

Sloped Curtain Wall At Stem Wall

Materials

Elements

Beams Walls Curtain Walls Stem Walls Insulation Connections / Plates

About this detail

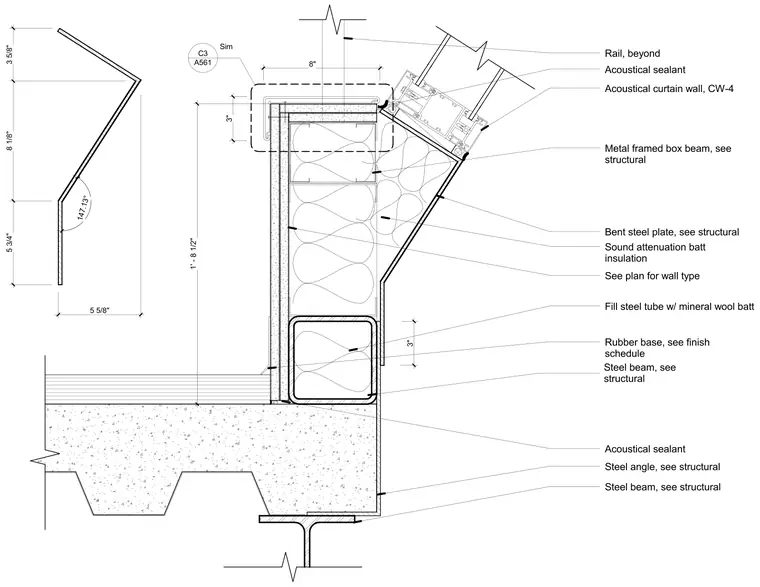

A sloped acoustical curtain wall, designated as CW-4, intersects with a structural steel beam and stem wall assembly. The curtain wall interfaces with a metal-framed box beam and a bent steel plate sized per structural drawings. Sound attenuation batt insulation is packed within the framed cavity, and the steel tube is filled with mineral wool batt insulation. Acoustical sealant is applied at the joints for sound isolation. The structural base incorporates a steel beam and steel angle anchoring into the concrete deck, finished at the interior with a rubber base per the finish schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
