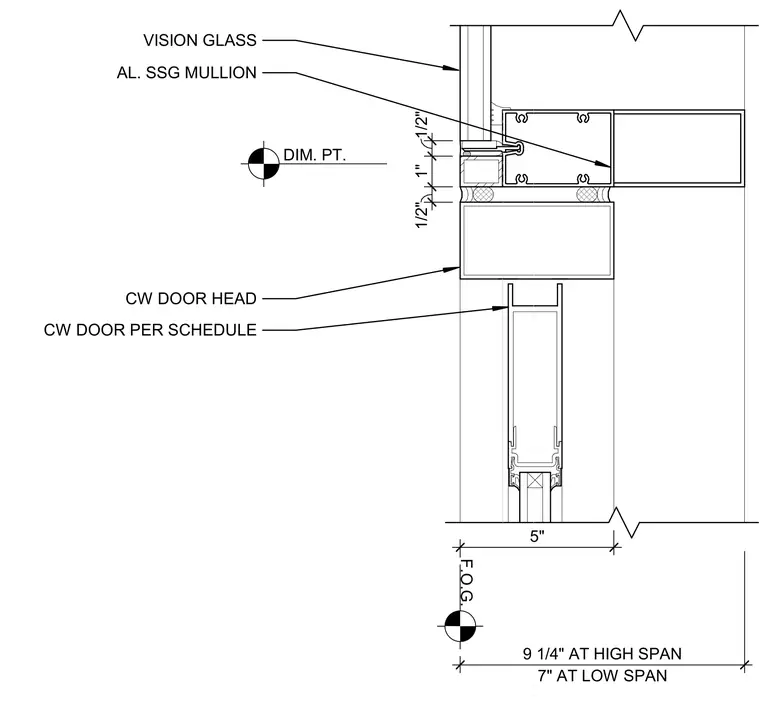

Head condition of a curtain wall door integrated with storefront framing and vision glass. An aluminum structural silicone glazed mullion supports the vision glass above a curtain wall door head frame specified per schedule. Vertical dimension points establish setting lines for the door head and glazing pockets, measuring five inches overall width with varied high and low spans.
DIM. PT. F.O.G. CW DOOR HEAD 1/2" 1" 1/2" CW DOOR PER SCHEDULE VISION GLASS AL. SSG MULLION 7" AT LOW SPAN 9 1/4" AT HIGH SPAN 5"
