Architectural · A-4QKCY

FSAE Lobby Door Jamb Section

Materials

Steel Timber / Wood Metal (misc.)

Elements

Doors Entrances

Connections

HSS Connection

About this detail

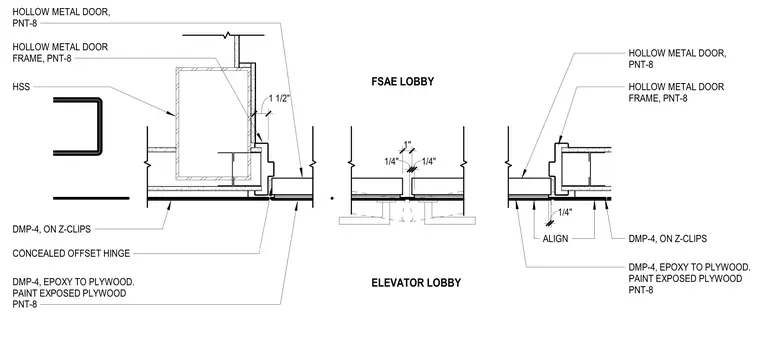

A hollow metal door frame is mounted adjacent to a structural hollow structural section column with a 1-1/2 inch clearance. The assembly includes Z-clips supporting DMP-4 panels and plywood secured with epoxy, with exposed plywood painted with PNT-8 finish. A hollow metal door with a concealed offset hinge swings within the frame. Adjacent wall finishes feature aligned panel joints with a 1/4 inch gap.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
