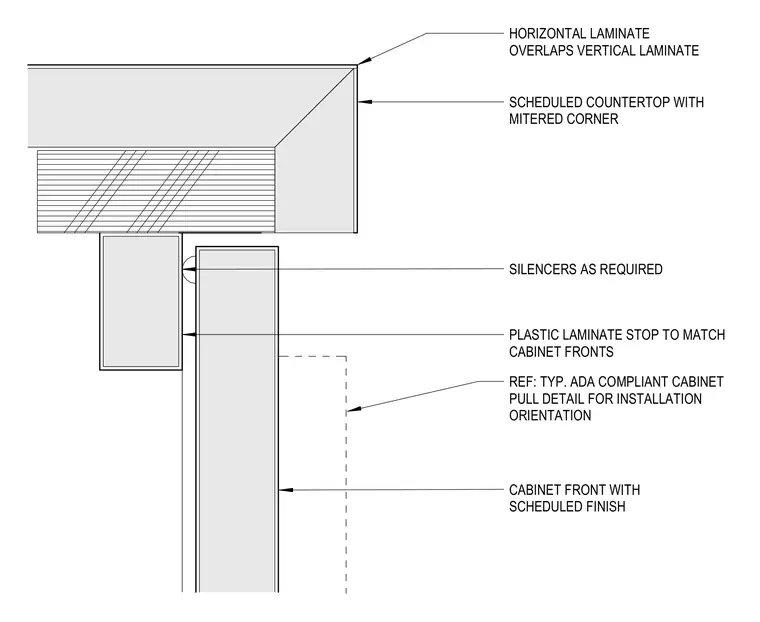

A scheduled countertop with a mitered corner features a horizontal plastic laminate finish overlapping the vertical laminate edge. Below the countertop, a plastic laminate stop matches the cabinet fronts and includes cabinet silencers as required. The cabinet front finishes with a scheduled finish and references a typical Americans with Disabilities Act compliant cabinet pull detail for installation orientation.
REF: TYP. ADA COMPLIANT CABINET PULL DETAIL FOR INSTALLATION ORIENTATION PLASTIC LAMINATE STOP TO MATCH CABINET FRONTS SILENCERS AS REQUIRED CABINET FRONT WITH SCHEDULED FINISH SCHEDULED COUNTERTOP WITH MITERED CORNER HORIZONTAL LAMINATE OVERLAPS VERTICAL LAMINATE
