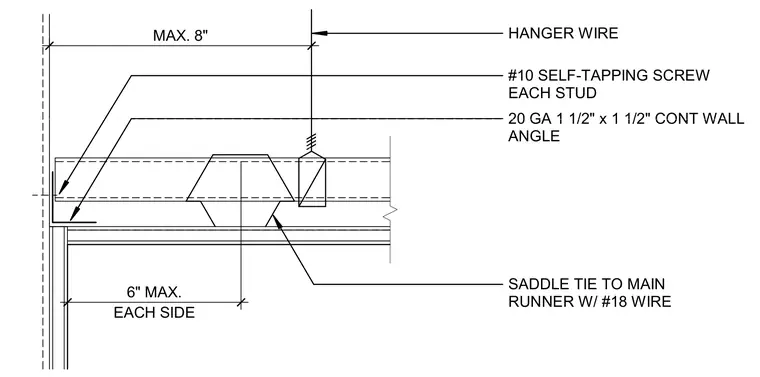

A twenty-gauge one-and-one-half-inch by one-and-one-half-inch continuous wall angle is secured to the wall with number ten self-tapping screws at each stud, providing a slip-joint bearing surface for the ceiling grid. A hanger wire supports the main runner with a saddle tie using number eighteen wire, positioned a maximum of eight inches from the wall. The first main runner intersection or support is spaced a maximum of six inches from each side.
MAX. 8" EACH SIDE 6" MAX. HANGER WIRE #10 SELF-TAPPING SCREW EACH STUD SADDLE TIE TO MAIN RUNNER W/ #18 WIRE 20 GA 1 1/2" x 1 1/2" CONT WALL ANGLE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
