Architectural · A-4Q2AZ

Roof Fascia and Edge Detail at Steel Beam

Materials

Steel Metal (misc.)

Elements

Beams Roofs Decks Insulation Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

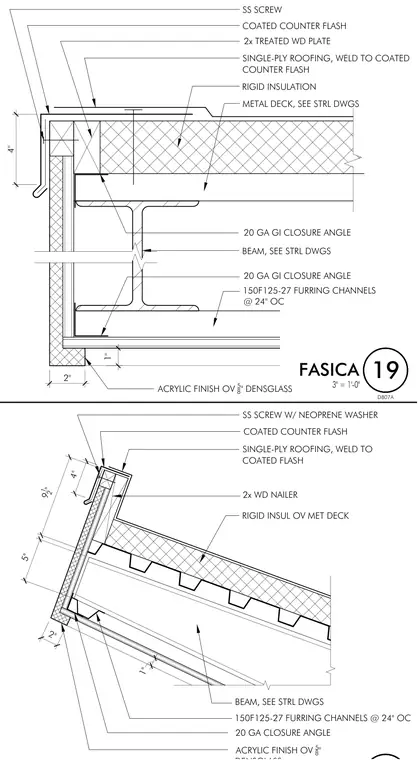

This roof edge detail features a single-ply roofing membrane secured over rigid insulation and a metal deck supported by a structural steel beam. A two-inch treated wood nailer anchors the coated counter flashing, which is fastened with stainless steel screws featuring neoprene washers. The fascia and soffit are finished with an acrylic finish over five-eighths-inch exterior sheathing, backed by twenty-gauge galvanized iron closure angles and one-and-one-half-inch furring channels spaced at twenty-four inches on center.
