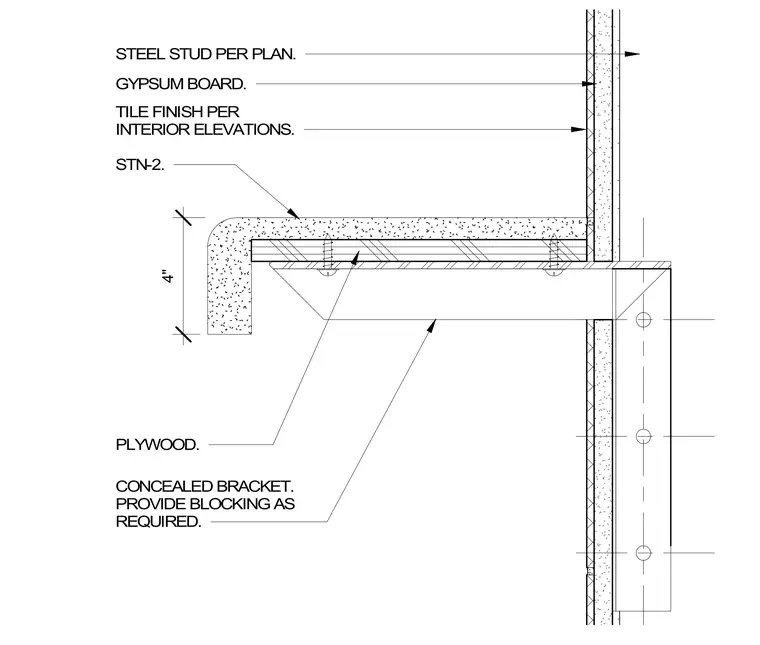

A concealed steel bracket supports a restroom shelf assembly mounted to a wall framed with four-inch steel studs per plan. The wall backing consists of gypsum board with a tile finish per interior elevations, alongside designation STN-2 for the shelf top. Plywood forms the core substrate of the shelf, fastened to the concealed bracket with screws. Additional wood blocking is provided as required within the stud cavity to secure the structural bracket.
4" STEEL STUD PER PLAN. GYPSUM BOARD. TILE FINISH PER INTERIOR ELEVATIONS. STN-2. PLYWOOD. CONCEALED BRACKET. PROVIDE BLOCKING AS REQUIRED.
