This interior casework assembly features a base cabinet unit supported by a two-by pressure-treated wood base frame cut to height and leveled with shims as required. The cabinet structure consists of semi-exposed casework finished with wood veneer and medium-density fiberboard core drawers typically featuring wood veneer finishes. A plywood substrate supports the simulated stone countertop placed on top. Overall height dimensions range from thirty-three and three-quarters inches minimum to thirty-four inches maximum.

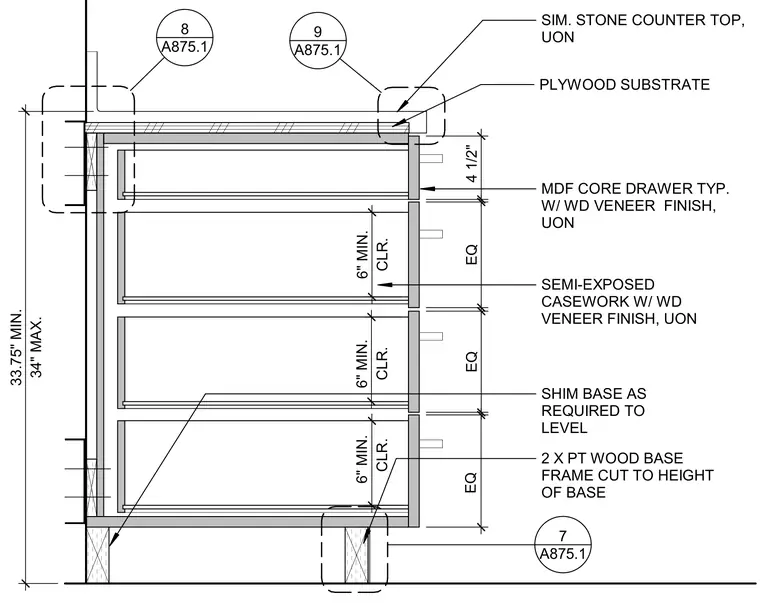

SIM. STONE COUNTER TOP, UON 2 X PT WOOD BASE FRAME CUT TO HEIGHT OF BASE SHIM BASE AS REQUIRED TO LEVEL PLYWOOD SUBSTRATE A875.1 7 A875.1 8 MDF CORE DRAWER TYP. W/ WD VENEER FINISH, UON A875.1 9 EQ 4 1/2" EQ EQ SEMI-EXPOSED CASEWORK W/ WD VENEER FINISH, UON 34" MAX. 33.75" MIN. CLR. 6" MIN. CLR. 6" MIN. CLR. 6" MIN.
