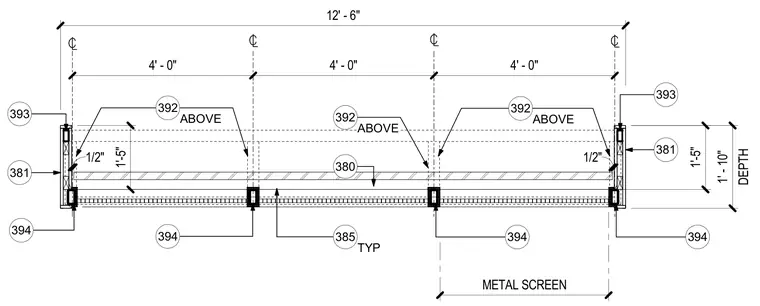

An exterior metal screen assembly spanning twelve feet and six inches overall width with four-foot typical module spacing. The vertical depth measures one foot and ten inches with internal framing elements spaced at one foot and five inches. Detail callouts number 380, 381, 385, 392, 393, and 394 coordinate the component locations throughout the assembly profile.
ABOVE 392 ABOVE 392 ABOVE 392 393 393 394 394 TYP 385 METAL SCREEN 381 381 380 DEPTH 1' - 10" 4' - 0" 4' - 0" 4' - 0" 12' - 6" 1/2" 1/2" 394 394 1'-5" 1'-5"
