Architectural · A-4PDW7

Hanger Wire Grid Attachment

Materials

Steel Gypsum / Drywall

Elements

Partitions Ceilings Bracing Reinforcing

Connections

Bracing Connection

About this detail

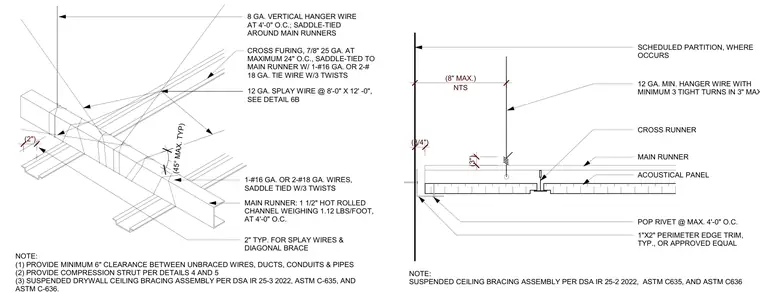

The suspended ceiling assembly features an eight-gauge vertical hanger wire spaced at four feet on center, saddle-tied around one-and-a-half-inch hot-rolled channel main runners weighing 1.12 pounds per foot. Seven-eighths-inch twenty-five-gauge cross furing is spaced at a maximum of twenty-four inches on center and saddle-tied to the main runner with one sixteen-gauge or two eighteen-gauge tie wires with three twists. Twelve-gauge splay wires are positioned at eight feet by twelve feet with a forty-five-degree maximum angle, alongside twelve-gauge minimum hanger wires featuring three tight turns in three inches. Perimeter edge trim consists of one-inch by two-inch sections secured with pop rivets at a maximum of four feet on center.
