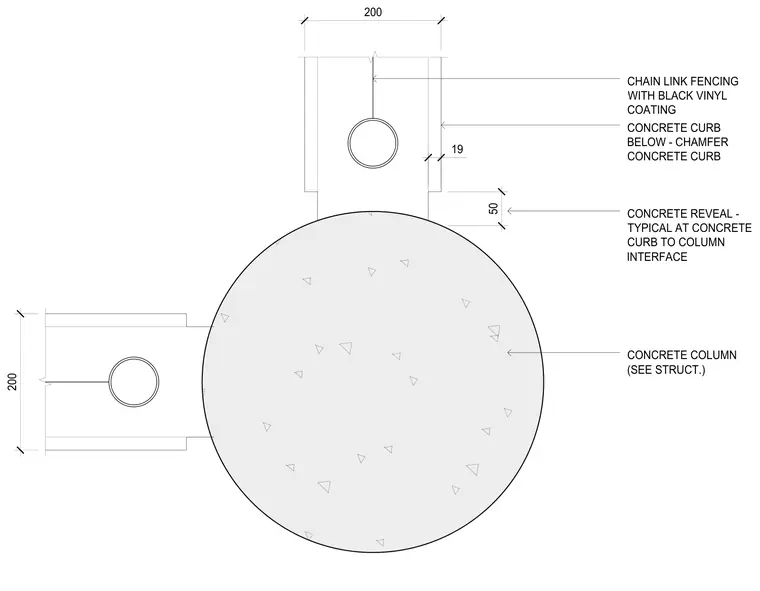

A black vinyl-coated chain-link fence, concrete curb, and concrete column intersect at this junction. The concrete curb features a chamfer and a typical concrete reveal at the interface with the column. Dimensions indicate a 200 width for the curb and fence assembly, a 19 clearance, and a 50 reveal offset. The concrete column is referenced to structural drawings.
CONCRETE REVEAL - TYPICAL AT CONCRETE CURB TO COLUMN INTERFACE 50 19 CHAIN LINK FENCING WITH BLACK VINYL COATING 200 CONCRETE CURB BELOW - CHAMFER CONCRETE CURB CONCRETE COLUMN (SEE STRUCT.) 200
