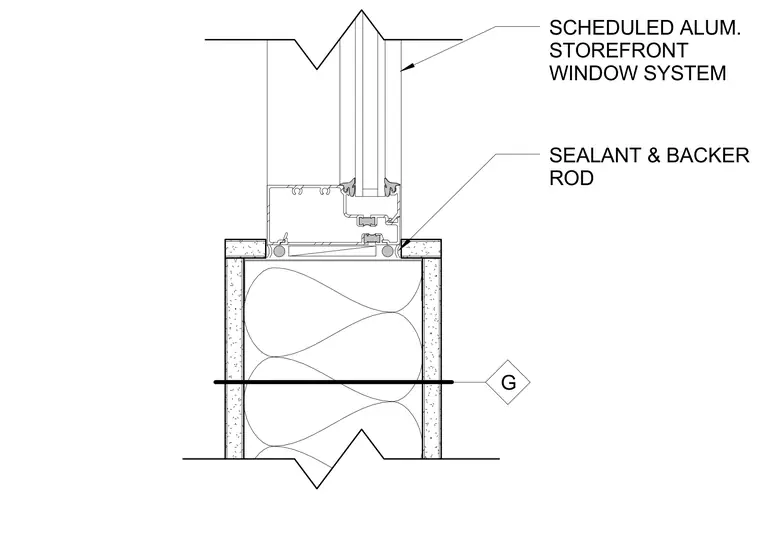

An aluminum storefront window system bears on a stud wall assembly, sealed at the exterior joint with sealant and backer rod.
SCHEDULED ALUM. STOREFRONT WINDOW SYSTEM SEALANT & BACKER ROD G
