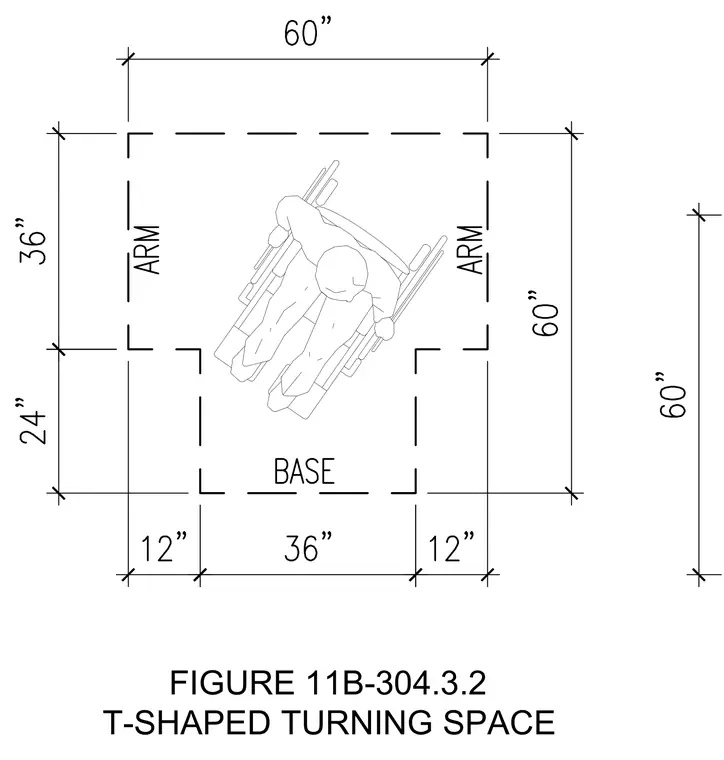

This accessibility layout establishes a T-shaped turning space measuring sixty inches square overall. The base of the T measures thirty-six inches wide by twenty-four inches deep, flanked by twelve-inch margins on each side. The upper arms extend thirty-six inches wide by thirty-six inches deep.
