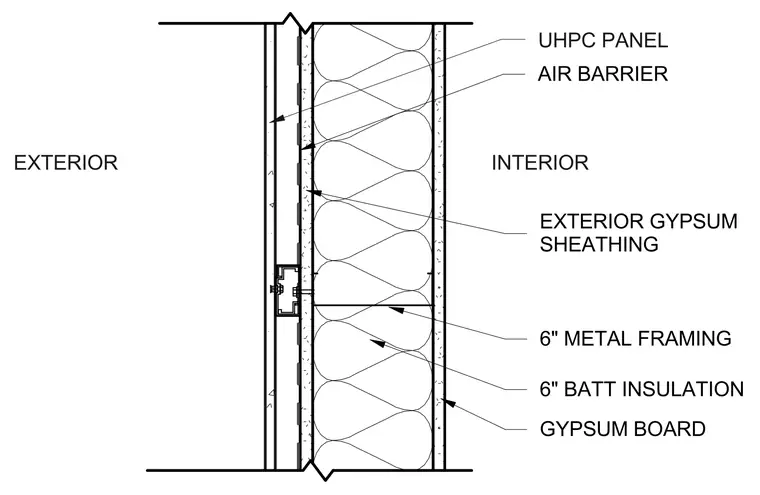

An exterior wall assembly featuring an ultra-high performance concrete panel on the exterior face backed by an air barrier and exterior gypsum sheathing over six-inch metal framing. The stud cavity is filled with six-inch batt insulation and finished on the interior with gypsum board.
EXTERIOR INTERIOR GYPSUM BOARD 6" METAL FRAMING AIR BARRIER EXTERIOR GYPSUM SHEATHING 6" BATT INSULATION UHPC PANEL
