Architectural · A-4NNMN

S4

Units: imperial
Sheet: A6.01
Discipline: Architectural

Materials

Cold-formed Steel Gypsum / Drywall Steel Timber / Wood

Elements

Partitions Walls

Text on the drawing

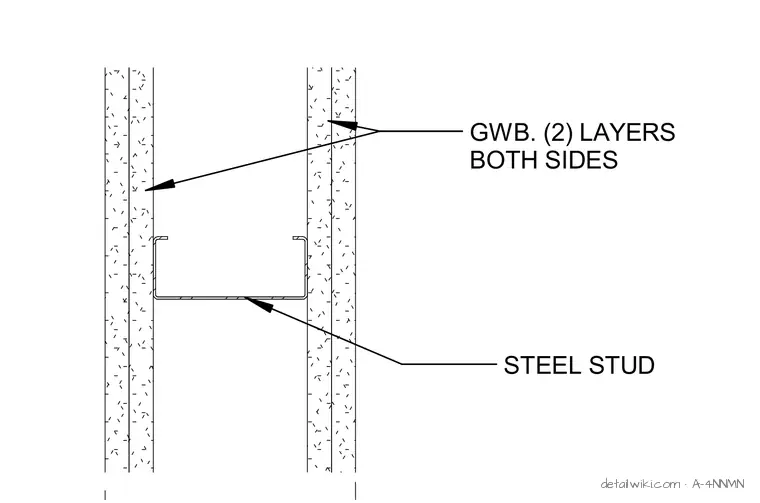

STEEL STUD GWB. (2) LAYERS BOTH SIDES
