Architectural · A-4NHB8

Roof Screen and Photovoltaic Panel Support Detail

Materials

Steel

Elements

Columns Beams Roofs Parapets

Connections

HSS Connection Welded Connection

About this detail

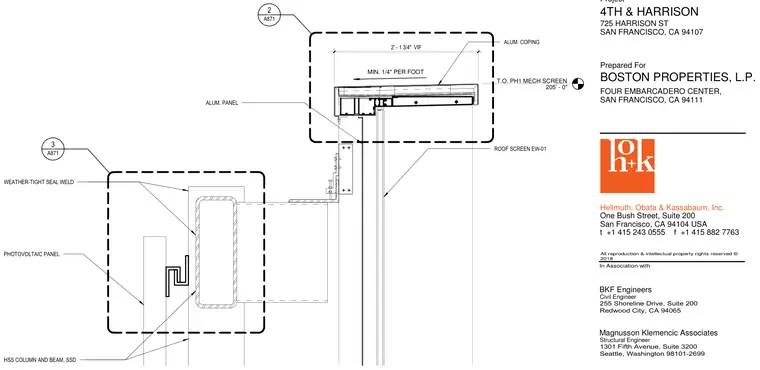

Top of a roof mechanical screen with an aluminum coping and exterior aluminum panels. The hollow structural section column and beam framing connect to support the assembly, featuring weather-tight seal welds at the structural junctions. A photovoltaic panel is integrated below, mounted in relation to the structural steel framework. The roof screen slopes at a minimum of one-quarter inch per foot to facilitate drainage.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
