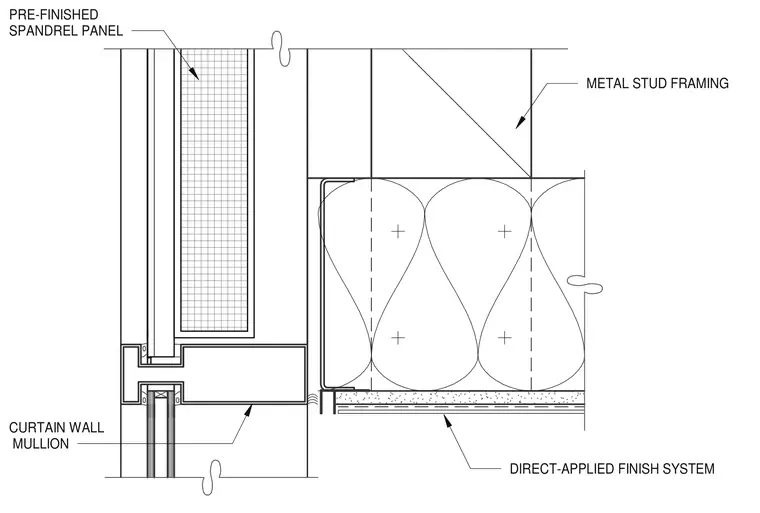

A curtain wall mullion supports a pre-finished spandrel panel adjacent to metal stud framing. A direct-applied finish system wraps the soffit and meets the framing and exterior wall assembly.
DIRECT-APPLIED FINISH SYSTEM CURTAIN WALL MULLION PRE-FINISHED SPANDREL PANEL METAL STUD FRAMING
