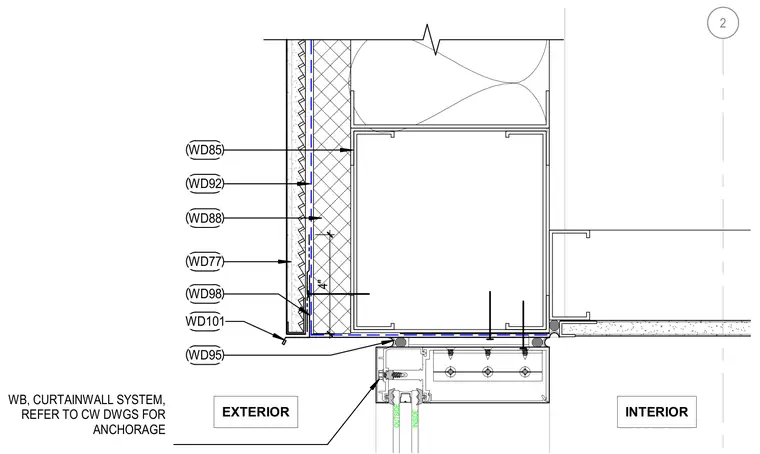

The exterior plaster and finish layers terminate at the head of the aluminum curtainwall framing system. Anchorage and structural attachments are coordinated per the curtainwall manufacturer drawings. Gaskets and sealants provide weather sealing along the exterior interface. Interior framing components align with the head section.
OUTSIDE INSIDE 2 4" EXTERIOR INTERIOR WD101 WD98 WD77 WD88 WD92 WD85 WD95 WB, CURTAINWALL SYSTEM, REFER TO CW DWGS FOR ANCHORAGE
