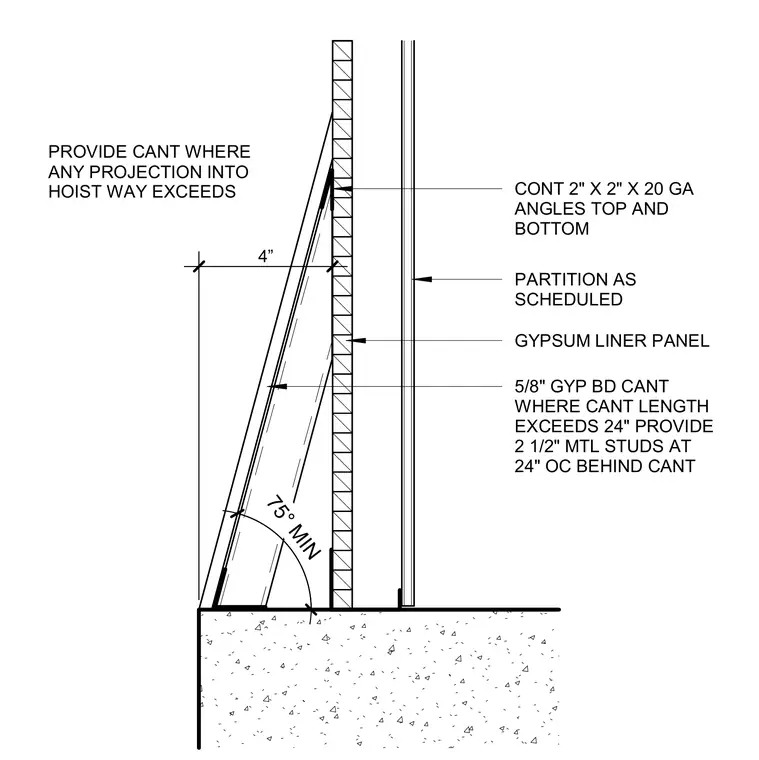

A five-eighths inch gypsum board cant strip is installed at elevator hoistway projections exceeding five-eighths of an inch, maintaining a minimum seventy-five degree angle. Two-and-a-half-inch metal studs spaced at twenty-four inches on center are provided behind the cant when the cant length exceeds twenty-four inches. Continuous two-inch by two-inch by twenty-gauge metal angles anchor the assembly at the top and bottom against a gypsum liner panel partition. A four-inch dimension controls the projection clearance above the concrete substrate.
PROVIDE CANT WHERE ANY PROJECTION INTO HOIST WAY EXCEEDS 5/8" GYP BD CANT WHERE CANT LENGTH EXCEEDS 24" PROVIDE 2 1/2" MTL STUDS AT 24" OC BEHIND CANT GYPSUM LINER PANEL PARTITION AS SCHEDULED CONT 2" X 2" X 20 GA ANGLES TOP AND BOTTOM 75° MIN 4”
